知识理论没跟上，先记录步骤

  • 考点：AES加解密过程及原理

题目代码如下，提供了AES的加密，其中魔改了mix_columns，尤其是伽罗华域乘法运算的模数，shift_rows。需要我们实现解密

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
#!/usr/bin/env python

def xor(a, b):
    return ''.join(chr(ord(ac) ^ ord(bc)) for ac, bc in zip(a, b))


Sbox = (
    0x63, 0x7C, 0x77, 0x7B, 0xF2, 0x6B, 0x6F, 0xC5, 0x30, 0x01, 0x67, 0x2B, 0xFE, 0xD7, 0xAB, 0x76,
    0xCA, 0x82, 0xC9, 0x7D, 0xFA, 0x59, 0x47, 0xF0, 0xAD, 0xD4, 0xA2, 0xAF, 0x9C, 0xA4, 0x72, 0xC0,
    0xB7, 0xFD, 0x93, 0x26, 0x36, 0x3F, 0xF7, 0xCC, 0x34, 0xA5, 0xE5, 0xF1, 0x71, 0xD8, 0x31, 0x15,
    0x04, 0xC7, 0x23, 0xC3, 0x18, 0x96, 0x05, 0x9A, 0x07, 0x12, 0x80, 0xE2, 0xEB, 0x27, 0xB2, 0x75,
    0x09, 0x83, 0x2C, 0x1A, 0x1B, 0x6E, 0x5A, 0xA0, 0x52, 0x3B, 0xD6, 0xB3, 0x29, 0xE3, 0x2F, 0x84,
    0x53, 0xD1, 0x00, 0xED, 0x20, 0xFC, 0xB1, 0x5B, 0x6A, 0xCB, 0xBE, 0x39, 0x4A, 0x4C, 0x58, 0xCF,
    0xD0, 0xEF, 0xAA, 0xFB, 0x43, 0x4D, 0x33, 0x85, 0x45, 0xF9, 0x02, 0x7F, 0x50, 0x3C, 0x9F, 0xA8,
    0x51, 0xA3, 0x40, 0x8F, 0x92, 0x9D, 0x38, 0xF5, 0xBC, 0xB6, 0xDA, 0x21, 0x10, 0xFF, 0xF3, 0xD2,
    0xCD, 0x0C, 0x13, 0xEC, 0x5F, 0x97, 0x44, 0x17, 0xC4, 0xA7, 0x7E, 0x3D, 0x64, 0x5D, 0x19, 0x73,
    0x60, 0x81, 0x4F, 0xDC, 0x22, 0x2A, 0x90, 0x88, 0x46, 0xEE, 0xB8, 0x14, 0xDE, 0x5E, 0x0B, 0xDB,
    0xE0, 0x32, 0x3A, 0x0A, 0x49, 0x06, 0x24, 0x5C, 0xC2, 0xD3, 0xAC, 0x62, 0x91, 0x95, 0xE4, 0x79,
    0xE7, 0xC8, 0x37, 0x6D, 0x8D, 0xD5, 0x4E, 0xA9, 0x6C, 0x56, 0xF4, 0xEA, 0x65, 0x7A, 0xAE, 0x08,
    0xBA, 0x78, 0x25, 0x2E, 0x1C, 0xA6, 0xB4, 0xC6, 0xE8, 0xDD, 0x74, 0x1F, 0x4B, 0xBD, 0x8B, 0x8A,
    0x70, 0x3E, 0xB5, 0x66, 0x48, 0x03, 0xF6, 0x0E, 0x61, 0x35, 0x57, 0xB9, 0x86, 0xC1, 0x1D, 0x9E,
    0xE1, 0xF8, 0x98, 0x11, 0x69, 0xD9, 0x8E, 0x94, 0x9B, 0x1E, 0x87, 0xE9, 0xCE, 0x55, 0x28, 0xDF,
    0x8C, 0xA1, 0x89, 0x0D, 0xBF, 0xE6, 0x42, 0x68, 0x41, 0x99, 0x2D, 0x0F, 0xB0, 0x54, 0xBB, 0x16,
)

InvSbox = (
    0x52, 0x09, 0x6A, 0xD5, 0x30, 0x36, 0xA5, 0x38, 0xBF, 0x40, 0xA3, 0x9E, 0x81, 0xF3, 0xD7, 0xFB,
    0x7C, 0xE3, 0x39, 0x82, 0x9B, 0x2F, 0xFF, 0x87, 0x34, 0x8E, 0x43, 0x44, 0xC4, 0xDE, 0xE9, 0xCB,
    0x54, 0x7B, 0x94, 0x32, 0xA6, 0xC2, 0x23, 0x3D, 0xEE, 0x4C, 0x95, 0x0B, 0x42, 0xFA, 0xC3, 0x4E,
    0x08, 0x2E, 0xA1, 0x66, 0x28, 0xD9, 0x24, 0xB2, 0x76, 0x5B, 0xA2, 0x49, 0x6D, 0x8B, 0xD1, 0x25,
    0x72, 0xF8, 0xF6, 0x64, 0x86, 0x68, 0x98, 0x16, 0xD4, 0xA4, 0x5C, 0xCC, 0x5D, 0x65, 0xB6, 0x92,
    0x6C, 0x70, 0x48, 0x50, 0xFD, 0xED, 0xB9, 0xDA, 0x5E, 0x15, 0x46, 0x57, 0xA7, 0x8D, 0x9D, 0x84,
    0x90, 0xD8, 0xAB, 0x00, 0x8C, 0xBC, 0xD3, 0x0A, 0xF7, 0xE4, 0x58, 0x05, 0xB8, 0xB3, 0x45, 0x06,
    0xD0, 0x2C, 0x1E, 0x8F, 0xCA, 0x3F, 0x0F, 0x02, 0xC1, 0xAF, 0xBD, 0x03, 0x01, 0x13, 0x8A, 0x6B,
    0x3A, 0x91, 0x11, 0x41, 0x4F, 0x67, 0xDC, 0xEA, 0x97, 0xF2, 0xCF, 0xCE, 0xF0, 0xB4, 0xE6, 0x73,
    0x96, 0xAC, 0x74, 0x22, 0xE7, 0xAD, 0x35, 0x85, 0xE2, 0xF9, 0x37, 0xE8, 0x1C, 0x75, 0xDF, 0x6E,
    0x47, 0xF1, 0x1A, 0x71, 0x1D, 0x29, 0xC5, 0x89, 0x6F, 0xB7, 0x62, 0x0E, 0xAA, 0x18, 0xBE, 0x1B,
    0xFC, 0x56, 0x3E, 0x4B, 0xC6, 0xD2, 0x79, 0x20, 0x9A, 0xDB, 0xC0, 0xFE, 0x78, 0xCD, 0x5A, 0xF4,
    0x1F, 0xDD, 0xA8, 0x33, 0x88, 0x07, 0xC7, 0x31, 0xB1, 0x12, 0x10, 0x59, 0x27, 0x80, 0xEC, 0x5F,
    0x60, 0x51, 0x7F, 0xA9, 0x19, 0xB5, 0x4A, 0x0D, 0x2D, 0xE5, 0x7A, 0x9F, 0x93, 0xC9, 0x9C, 0xEF,
    0xA0, 0xE0, 0x3B, 0x4D, 0xAE, 0x2A, 0xF5, 0xB0, 0xC8, 0xEB, 0xBB, 0x3C, 0x83, 0x53, 0x99, 0x61,
    0x17, 0x2B, 0x04, 0x7E, 0xBA, 0x77, 0xD6, 0x26, 0xE1, 0x69, 0x14, 0x63, 0x55, 0x21, 0x0C, 0x7D,
)


xtime = lambda a: (((a << 1) ^ 99) & 0xFF) if (a & 0x80) else (a << 1)

Rcon = [0x0,0x1,0x2,0x4,0x8,0x10,0x20,0x40,0x80,0x1b,0x36,0x6c,0xd8,0xab,0x4d,0x9a,0x2f,0x5e,0xbc,0x63,0xc6,0x97,0x35,0x6a,0xd4,0xb3,0x7d,0xfa,0xef,0xc5,0x91,0x39]

def xx(i,j):
    t = i
    res = 0
    while j != 0:
        if j & 1:
            res ^= t
        t = xtime(t)
        j >>= 1
    return res

def text2matrix(text):
    matrix = []
    for i in range(16):
        byte = ord(text[i])
        if i % 4 == 0:
            matrix.append([byte])
        else:
            matrix[i / 4].append(byte)
    return matrix


def matrix2text(matrix):
    text = ''
    for i in range(4):
        for j in range(4):
            text = text + chr(matrix[i][j])
    return text


class N1AES:
    def __init__(self, master_key=None):
        if master_key:
            self.change_key(master_key)

    def change_key(self, master_key):
        self.skey = int(master_key.encode('hex'),16)

        self.round_keys = text2matrix(master_key)

        for i in range(4, 4 * 11):
            self.round_keys.append([])
            if i % 4 == 0:
                byte = self.round_keys[i - 4][0] \
                       ^ Sbox[self.round_keys[i - 1][1]] \
                       ^ Rcon[i / 4]
                self.round_keys[i].append(byte)

                for j in range(1, 4):
                    byte = self.round_keys[i - 4][j] \
                           ^ Sbox[self.round_keys[i - 1][(j + 1) % 4]]
                    self.round_keys[i].append(byte)
            else:
                for j in range(4):
                    byte = self.round_keys[i - 4][j] \
                           ^ self.round_keys[i - 1][j]
                    self.round_keys[i].append(byte)

    def encrypt(self, plaintext):
        self.plain_state = text2matrix(plaintext)
        self.add_round_key(self.plain_state, self.round_keys[:4])
        for i in range(1, 10):
            self.round_encrypt(self.plain_state, self.round_keys[4 * i: 4 * (i + 1)])
        self.sub_bytes(self.plain_state)
        self.shift_rows(self.plain_state)
        self.add_round_key(self.plain_state, self.round_keys[40:])

        return matrix2text(self.plain_state)

    def add_round_key(self, s, k):
        for i in range(4):
            for j in range(4):
                s[i][j] ^= k[i][j]

    def round_encrypt(self, state_matrix, key_matrix):
        self.sub_bytes(state_matrix)
        self.shift_rows(state_matrix)
        self.mix_columns(state_matrix)
        self.add_round_key(state_matrix, key_matrix)

    def sub_bytes(self, s):
        for i in range(4):
            for j in range(4):
                s[i][j] = Sbox[s[i][j]]

    def shift_rows(self, s):
        r = [14, 12, 10, 11, 3, 2, 0, 13, 9, 5, 4, 8, 15, 1, 6, 7]
        t = []
        for i in xrange(4):
            for j in xrange(4):
                t.append(s[i][j])
        for i in xrange(16):
            s[i/4][i%4] = t[r[i]]

    def mix_columns(self, s):
        wt = [3, 10, 8, 6]
        for i in range(4):
            s0 = xx(s[0][i],wt[0]) ^ xx(s[1][i],wt[1]) ^ xx(s[2][i],wt[2]) ^ xx(s[3][i],wt[3])
            s1 = xx(s[0][i],wt[1]) ^ xx(s[1][i],wt[2]) ^ xx(s[2][i],wt[3]) ^ xx(s[3][i],wt[0])
            s2 = xx(s[0][i],wt[2]) ^ xx(s[1][i],wt[3]) ^ xx(s[2][i],wt[0]) ^ xx(s[3][i],wt[1])
            s3 = xx(s[0][i],wt[3]) ^ xx(s[1][i],wt[0]) ^ xx(s[2][i],wt[1]) ^ xx(s[3][i],wt[2])
            s[0][i] = s0
            s[1][i] = s1
            s[2][i] = s2
            s[3][i] = s3

a = N1AES("THEAESPARTN1BOOK")
b = a.encrypt(flag[:16]) +  a.encrypt(flag[16:])
print(b.encode('hex')) # 588aa4c53819273bd2cdd6a20de7453ca21ef63d75077daa42b30e7fad50b39f

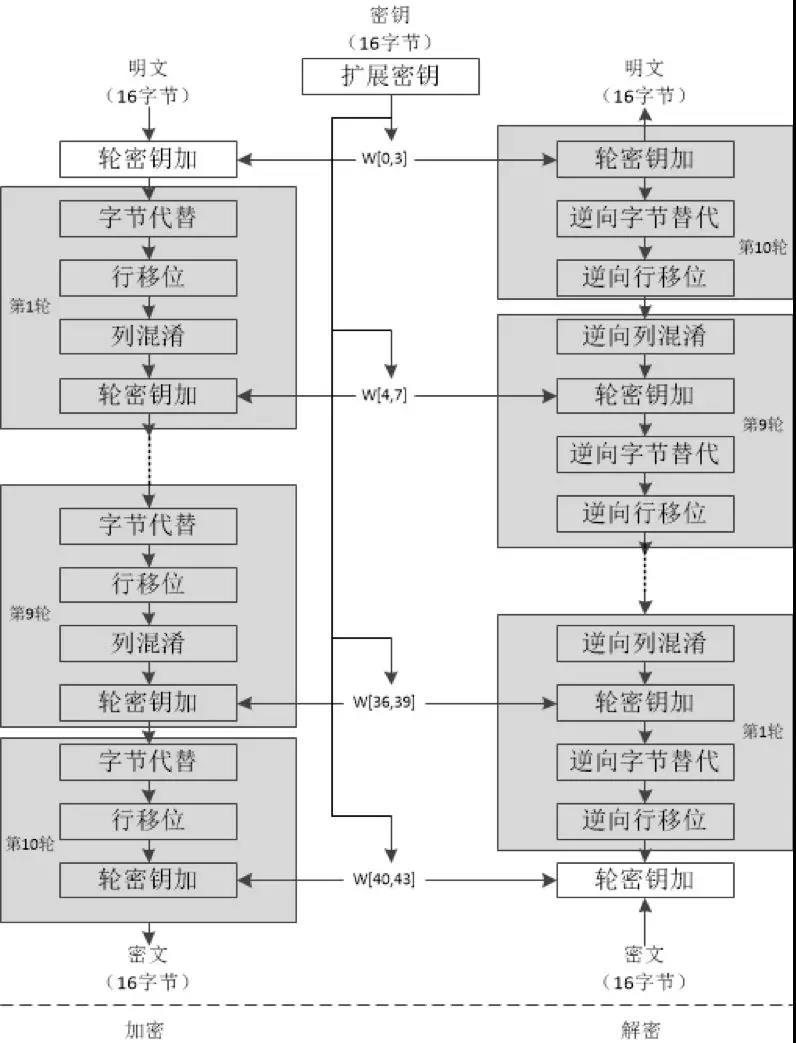

AES10轮的加解密流程大致如下，此外

  • 10rounds对应128bits
  • 12rounds对应192bits
  • 14rounds对应256bits

preview

所以解密我们需要逆round_encrypt，sub_bytes，shift_rows和mix_columns，其中前三者比较简单，对着写就好

逆round_encrypt

1
2
3
4
5
6
7
8
9
10
11
def round_encrypt(self, state_matrix, key_matrix):
    self.sub_bytes(state_matrix)
    self.shift_rows(state_matrix)
    self.mix_columns(state_matrix)
    self.add_round_key(state_matrix, key_matrix)

def round_decrypt(self, state_matrix, key_matrix):
    self.add_round_key(state_matrix, key_matrix)
    self.inv_mix_columns(state_matrix)
    self.inv_shift_rows(state_matrix)
    self.inv_sub_bytes(state_matrix)

逆sub_bytes

1
2
3
4
5
6
7
8
9
def sub_bytes(self, s):
    for i in range(4):
        for j in range(4):
            s[i][j] = Sbox[s[i][j]]

def inv_sub_bytes(self, s):
    for i in range(4):
        for j in range(4):
            s[i][j] = InvSbox[s[i][j]]

逆shift_rows

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
def shift_rows(self, s):
    r = [14, 12, 10, 11, 3, 2, 0, 13, 9, 5, 4, 8, 15, 1, 6, 7]
    t = []
    for i in range(4):
        for j in range(4):
            t.append(s[i][j])
            for i in range(16):
                s[i/4][i%4] = t[r[i]]

def inv_shift_rows(self, s):
    r = [6, 13, 5, 4, 10, 9, 14, 15, 11, 8, 2, 3, 1, 7, 0, 12]
    t = []
    for i in range(4):
        for j in range(4):
            t.append(s[i][j])
            for i in range(16):
                s[i/4][i%4] = t[r[i]]

逆mix_columns

让我们观察下mix_columns，其是在$GF(2^8)$域上模多项式$x^8 + x^6 + x^5 + x + 1$（把99化成二进制）相乘一个矩阵
$$
\begin{bmatrix} 3 & 6 & 8 & 10 \\ 10 & 3 & 6 & 8 \\ 8 & 10 & 3 & 6 \\ 6 & 8 & 10 & 3 \end{bmatrix}\notag
$$

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
xtime = lambda a: (((a << 1) ^ 99) & 0xFF) if (a & 0x80) else (a << 1)

def xx(i,j):
    t = i
    res = 0
    while j != 0:
        if j & 1:
            res ^= t
        t = xtime(t)
        j >>= 1
    return res

def mix_columns(self, s):
        wt = [3, 10, 8, 6]
        for i in range(4):
            s0 = xx(s[0][i],wt[0]) ^ xx(s[1][i],wt[1]) ^ xx(s[2][i],wt[2]) ^ xx(s[3][i],wt[3])
            s1 = xx(s[0][i],wt[1]) ^ xx(s[1][i],wt[2]) ^ xx(s[2][i],wt[3]) ^ xx(s[3][i],wt[0])
            s2 = xx(s[0][i],wt[2]) ^ xx(s[1][i],wt[3]) ^ xx(s[2][i],wt[0]) ^ xx(s[3][i],wt[1])
            s3 = xx(s[0][i],wt[3]) ^ xx(s[1][i],wt[0]) ^ xx(s[2][i],wt[1]) ^ xx(s[3][i],wt[2])
            s[0][i] = s0
            s[1][i] = s1
            s[2][i] = s2
            s[3][i] = s3

所以逆mix_columns需要求出如下矩阵下的逆，这里直接抄自从0到1书中代码

1
2
3
4
5
6
7
8
9
10
11
12
13
#!/usr/bin/env sage
mix = [3, 6, 8, 10]
k.<a> = GF(2)[]
l.<x> = GF(2^8, modulus = a^8 + a^6 + a^5 + a + 1)
res = []
for i in range(4):
    res2 = []
    t = mix[4-i:] + mix[:4-i]
    for j in range(4):
        res2.append(l.fetch_int(t[j]))
    res.append(res2)
res = Matrix(res)
res.inverse()

image-20220706114015277

得到

1
2
3
4
5
6
7
8
9
10
11
def inv_mix_columns(self, s):
    wt = [0x63, 0xd6, 0xfc, 0xc5]
    for i in range(4):
        s0 = xx(s[0][i],wt[0]) ^ xx(s[1][i],wt[1]) ^ xx(s[2][i],wt[2]) ^ xx(s[3][i],wt[3])
        s1 = xx(s[0][i],wt[1]) ^ xx(s[1][i],wt[2]) ^ xx(s[2][i],wt[3]) ^ xx(s[3][i],wt[0])
        s2 = xx(s[0][i],wt[2]) ^ xx(s[1][i],wt[3]) ^ xx(s[2][i],wt[0]) ^ xx(s[3][i],wt[1])
        s3 = xx(s[0][i],wt[3]) ^ xx(s[1][i],wt[0]) ^ xx(s[2][i],wt[1]) ^ xx(s[3][i],wt[2])
        s[0][i] = s0
        s[1][i] = s1
        s[2][i] = s2
        s[3][i] = s3

最终的exp如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
Sbox = (
    0x63, 0x7C, 0x77, 0x7B, 0xF2, 0x6B, 0x6F, 0xC5, 0x30, 0x01, 0x67, 0x2B, 0xFE, 0xD7, 0xAB, 0x76,
    0xCA, 0x82, 0xC9, 0x7D, 0xFA, 0x59, 0x47, 0xF0, 0xAD, 0xD4, 0xA2, 0xAF, 0x9C, 0xA4, 0x72, 0xC0,
    0xB7, 0xFD, 0x93, 0x26, 0x36, 0x3F, 0xF7, 0xCC, 0x34, 0xA5, 0xE5, 0xF1, 0x71, 0xD8, 0x31, 0x15,
    0x04, 0xC7, 0x23, 0xC3, 0x18, 0x96, 0x05, 0x9A, 0x07, 0x12, 0x80, 0xE2, 0xEB, 0x27, 0xB2, 0x75,
    0x09, 0x83, 0x2C, 0x1A, 0x1B, 0x6E, 0x5A, 0xA0, 0x52, 0x3B, 0xD6, 0xB3, 0x29, 0xE3, 0x2F, 0x84,
    0x53, 0xD1, 0x00, 0xED, 0x20, 0xFC, 0xB1, 0x5B, 0x6A, 0xCB, 0xBE, 0x39, 0x4A, 0x4C, 0x58, 0xCF,
    0xD0, 0xEF, 0xAA, 0xFB, 0x43, 0x4D, 0x33, 0x85, 0x45, 0xF9, 0x02, 0x7F, 0x50, 0x3C, 0x9F, 0xA8,
    0x51, 0xA3, 0x40, 0x8F, 0x92, 0x9D, 0x38, 0xF5, 0xBC, 0xB6, 0xDA, 0x21, 0x10, 0xFF, 0xF3, 0xD2,
    0xCD, 0x0C, 0x13, 0xEC, 0x5F, 0x97, 0x44, 0x17, 0xC4, 0xA7, 0x7E, 0x3D, 0x64, 0x5D, 0x19, 0x73,
    0x60, 0x81, 0x4F, 0xDC, 0x22, 0x2A, 0x90, 0x88, 0x46, 0xEE, 0xB8, 0x14, 0xDE, 0x5E, 0x0B, 0xDB,
    0xE0, 0x32, 0x3A, 0x0A, 0x49, 0x06, 0x24, 0x5C, 0xC2, 0xD3, 0xAC, 0x62, 0x91, 0x95, 0xE4, 0x79,
    0xE7, 0xC8, 0x37, 0x6D, 0x8D, 0xD5, 0x4E, 0xA9, 0x6C, 0x56, 0xF4, 0xEA, 0x65, 0x7A, 0xAE, 0x08,
    0xBA, 0x78, 0x25, 0x2E, 0x1C, 0xA6, 0xB4, 0xC6, 0xE8, 0xDD, 0x74, 0x1F, 0x4B, 0xBD, 0x8B, 0x8A,
    0x70, 0x3E, 0xB5, 0x66, 0x48, 0x03, 0xF6, 0x0E, 0x61, 0x35, 0x57, 0xB9, 0x86, 0xC1, 0x1D, 0x9E,
    0xE1, 0xF8, 0x98, 0x11, 0x69, 0xD9, 0x8E, 0x94, 0x9B, 0x1E, 0x87, 0xE9, 0xCE, 0x55, 0x28, 0xDF,
    0x8C, 0xA1, 0x89, 0x0D, 0xBF, 0xE6, 0x42, 0x68, 0x41, 0x99, 0x2D, 0x0F, 0xB0, 0x54, 0xBB, 0x16,
)

InvSbox = (
    0x52, 0x09, 0x6A, 0xD5, 0x30, 0x36, 0xA5, 0x38, 0xBF, 0x40, 0xA3, 0x9E, 0x81, 0xF3, 0xD7, 0xFB,
    0x7C, 0xE3, 0x39, 0x82, 0x9B, 0x2F, 0xFF, 0x87, 0x34, 0x8E, 0x43, 0x44, 0xC4, 0xDE, 0xE9, 0xCB,
    0x54, 0x7B, 0x94, 0x32, 0xA6, 0xC2, 0x23, 0x3D, 0xEE, 0x4C, 0x95, 0x0B, 0x42, 0xFA, 0xC3, 0x4E,
    0x08, 0x2E, 0xA1, 0x66, 0x28, 0xD9, 0x24, 0xB2, 0x76, 0x5B, 0xA2, 0x49, 0x6D, 0x8B, 0xD1, 0x25,
    0x72, 0xF8, 0xF6, 0x64, 0x86, 0x68, 0x98, 0x16, 0xD4, 0xA4, 0x5C, 0xCC, 0x5D, 0x65, 0xB6, 0x92,
    0x6C, 0x70, 0x48, 0x50, 0xFD, 0xED, 0xB9, 0xDA, 0x5E, 0x15, 0x46, 0x57, 0xA7, 0x8D, 0x9D, 0x84,
    0x90, 0xD8, 0xAB, 0x00, 0x8C, 0xBC, 0xD3, 0x0A, 0xF7, 0xE4, 0x58, 0x05, 0xB8, 0xB3, 0x45, 0x06,
    0xD0, 0x2C, 0x1E, 0x8F, 0xCA, 0x3F, 0x0F, 0x02, 0xC1, 0xAF, 0xBD, 0x03, 0x01, 0x13, 0x8A, 0x6B,
    0x3A, 0x91, 0x11, 0x41, 0x4F, 0x67, 0xDC, 0xEA, 0x97, 0xF2, 0xCF, 0xCE, 0xF0, 0xB4, 0xE6, 0x73,
    0x96, 0xAC, 0x74, 0x22, 0xE7, 0xAD, 0x35, 0x85, 0xE2, 0xF9, 0x37, 0xE8, 0x1C, 0x75, 0xDF, 0x6E,
    0x47, 0xF1, 0x1A, 0x71, 0x1D, 0x29, 0xC5, 0x89, 0x6F, 0xB7, 0x62, 0x0E, 0xAA, 0x18, 0xBE, 0x1B,
    0xFC, 0x56, 0x3E, 0x4B, 0xC6, 0xD2, 0x79, 0x20, 0x9A, 0xDB, 0xC0, 0xFE, 0x78, 0xCD, 0x5A, 0xF4,
    0x1F, 0xDD, 0xA8, 0x33, 0x88, 0x07, 0xC7, 0x31, 0xB1, 0x12, 0x10, 0x59, 0x27, 0x80, 0xEC, 0x5F,
    0x60, 0x51, 0x7F, 0xA9, 0x19, 0xB5, 0x4A, 0x0D, 0x2D, 0xE5, 0x7A, 0x9F, 0x93, 0xC9, 0x9C, 0xEF,
    0xA0, 0xE0, 0x3B, 0x4D, 0xAE, 0x2A, 0xF5, 0xB0, 0xC8, 0xEB, 0xBB, 0x3C, 0x83, 0x53, 0x99, 0x61,
    0x17, 0x2B, 0x04, 0x7E, 0xBA, 0x77, 0xD6, 0x26, 0xE1, 0x69, 0x14, 0x63, 0x55, 0x21, 0x0C, 0x7D,
)


Rcon = [0x0,0x1,0x2,0x4,0x8,0x10,0x20,0x40,0x80,0x1b,0x36,0x6c,0xd8,0xab,0x4d,0x9a,0x2f,0x5e,0xbc,0x63,0xc6,0x97,0x35,0x6a,0xd4,0xb3,0x7d,0xfa,0xef,0xc5,0x91,0x39]
xtime = lambda a: (((a << 1) ^ 99) & 0xFF) if (a & 0x80) else (a << 1)

def xx(i,j):
    t = i
    res = 0
    while j != 0:
        if j & 1:
            res ^= t
        t = xtime(t)
        j >>= 1
    return res

def text2matrix(text):
    matrix = []
    for i in range(16):
        byte = ord(text[i])
        if i % 4 == 0:
            matrix.append([byte])
        else:
            matrix[i //4].append(byte)
    return matrix

def matrix2text(matrix):
    text = ''
    for i in range(4):
        for j in range(4):
            text = text + chr(matrix[i][j])
    return text


class N1AES:
    def __init__(self, master_key=None, fuck=None):
        if master_key:
            self.change_key(master_key)
            self.fuck = fuck

    def change_key(self, master_key):
        self.skey = int(master_key.encode('hex'),16)
        self.round_keys = text2matrix(master_key)

        for i in range(4, 4 * 11):
            self.round_keys.append([])
            if i % 4 == 0:
                byte = self.round_keys[i - 4][0] \
                       ^ Sbox[self.round_keys[i - 1][1]] \
                       ^ Rcon[i //4]
                self.round_keys[i].append(byte)

                for j in range(1, 4):
                    byte = self.round_keys[i - 4][j] \
                           ^ Sbox[self.round_keys[i - 1][(j + 1) % 4]]
                    self.round_keys[i].append(byte)
            else:
                for j in range(4):
                    byte = self.round_keys[i - 4][j] \
                           ^ self.round_keys[i - 1][j]
                    self.round_keys[i].append(byte)

    def encrypt(self, plaintext):
        self.plain_state = text2matrix(plaintext)
        self.add_round_key(self.plain_state, self.round_keys[:4])
        for i in range(1, 10):
            self.round_encrypt(self.plain_state, self.round_keys[4 * i: 4 * (i + 1)])
        self.sub_bytes(self.plain_state)
        self.shift_rows(self.plain_state)
        self.add_round_key(self.plain_state, self.round_keys[40:])

        return matrix2text(self.plain_state)

    def decrypt(self, ciphertext):
        self.cipher_state = text2matrix(ciphertext)
        self.add_round_key(self.cipher_state, self.round_keys[40:])
        self.inv_shift_rows(self.cipher_state)
        self.inv_sub_bytes(self.cipher_state)
        for i in range(9, 0, -1):
            self.round_decrypt(self.cipher_state, self.round_keys[4 * i: 4 * (i + 1)])
        self.add_round_key(self.cipher_state, self.round_keys[:4])

        return matrix2text(self.cipher_state)

    def add_round_key(self, s, k):
        for i in range(4):
            for j in range(4):
                s[i][j] ^= k[i][j]

    def round_encrypt(self, state_matrix, key_matrix):
        self.sub_bytes(state_matrix)
        self.shift_rows(state_matrix)
        self.mix_columns(state_matrix)
        self.add_round_key(state_matrix, key_matrix)

    def round_decrypt(self, state_matrix, key_matrix):
        self.add_round_key(state_matrix, key_matrix)
        self.inv_mix_columns(state_matrix)
        self.inv_shift_rows(state_matrix)
        self.inv_sub_bytes(state_matrix)

    def sub_bytes(self, s):
        for i in range(4):
            for j in range(4):
                s[i][j] = Sbox[s[i][j]]

    def inv_sub_bytes(self, s):
        for i in range(4):
            for j in range(4):
                s[i][j] = InvSbox[s[i][j]]

    def shift_rows(self, s):
        r = [14, 12, 10, 11, 3, 2, 0, 13, 9, 5, 4, 8, 15, 1, 6, 7]
        t = []
        for i in range(4):
            for j in range(4):
                t.append(s[i][j])
        for i in range(16):
            s[i/4][i%4] = t[r[i]]

    def inv_shift_rows(self, s):
        r = [6, 13, 5, 4, 10, 9, 14, 15, 11, 8, 2, 3, 1, 7, 0, 12]
        t = []
        for i in range(4):
            for j in range(4):
                t.append(s[i][j])
        for i in range(16):
            s[i/4][i%4] = t[r[i]]

    def mix_columns(self, s):
        wt = [3, 10, 8, 6]
        for i in range(4):
            s0 = xx(s[0][i],wt[0]) ^ xx(s[1][i],wt[1]) ^ xx(s[2][i],wt[2]) ^ xx(s[3][i],wt[3])
            s1 = xx(s[0][i],wt[1]) ^ xx(s[1][i],wt[2]) ^ xx(s[2][i],wt[3]) ^ xx(s[3][i],wt[0])
            s2 = xx(s[0][i],wt[2]) ^ xx(s[1][i],wt[3]) ^ xx(s[2][i],wt[0]) ^ xx(s[3][i],wt[1])
            s3 = xx(s[0][i],wt[3]) ^ xx(s[1][i],wt[0]) ^ xx(s[2][i],wt[1]) ^ xx(s[3][i],wt[2])
            s[0][i] = s0
            s[1][i] = s1
            s[2][i] = s2
            s[3][i] = s3

    def inv_mix_columns(self, s):
        wt = self.fuck
        for i in range(4):
            s0 = xx(s[0][i],wt[0]) ^ xx(s[1][i],wt[1]) ^ xx(s[2][i],wt[2]) ^ xx(s[3][i],wt[3])
            s1 = xx(s[0][i],wt[1]) ^ xx(s[1][i],wt[2]) ^ xx(s[2][i],wt[3]) ^ xx(s[3][i],wt[0])
            s2 = xx(s[0][i],wt[2]) ^ xx(s[1][i],wt[3]) ^ xx(s[2][i],wt[0]) ^ xx(s[3][i],wt[1])
            s3 = xx(s[0][i],wt[3]) ^ xx(s[1][i],wt[0]) ^ xx(s[2][i],wt[1]) ^ xx(s[3][i],wt[2])
            s[0][i] = s0
            s[1][i] = s1
            s[2][i] = s2
            s[3][i] = s3



a = N1AES("THEAESPARTN1BOOK", [0x63,0xd6,0xfc,0xc5])
c = '588aa4c53819273bd2cdd6a20de7453ca21ef63d75077daa42b30e7fad50b39f'.decode('hex')

print(a.decrypt(c[:16]) + a.decrypt(c[16:]))
# n1book{~w0w~_Y0u_1e4rN3d_AES!~~}

Appendix

补充在$GF(2^8)$上多项式的模乘和求逆

多项式模乘

在$GF(2^8)$上，指数大于等于8，就要用$x^8=x^4+x^3+x+1$代掉（传统AES），并相同指数的系数异或

参考AES求mix column

image-20220727094515301

多项式求逆

参考求逆元

Bezout恒等式

在求整数逆元的时候，例子如下

image-20220727101721037

在求多项式逆元的时候，例子如下

image-20220727101756105
